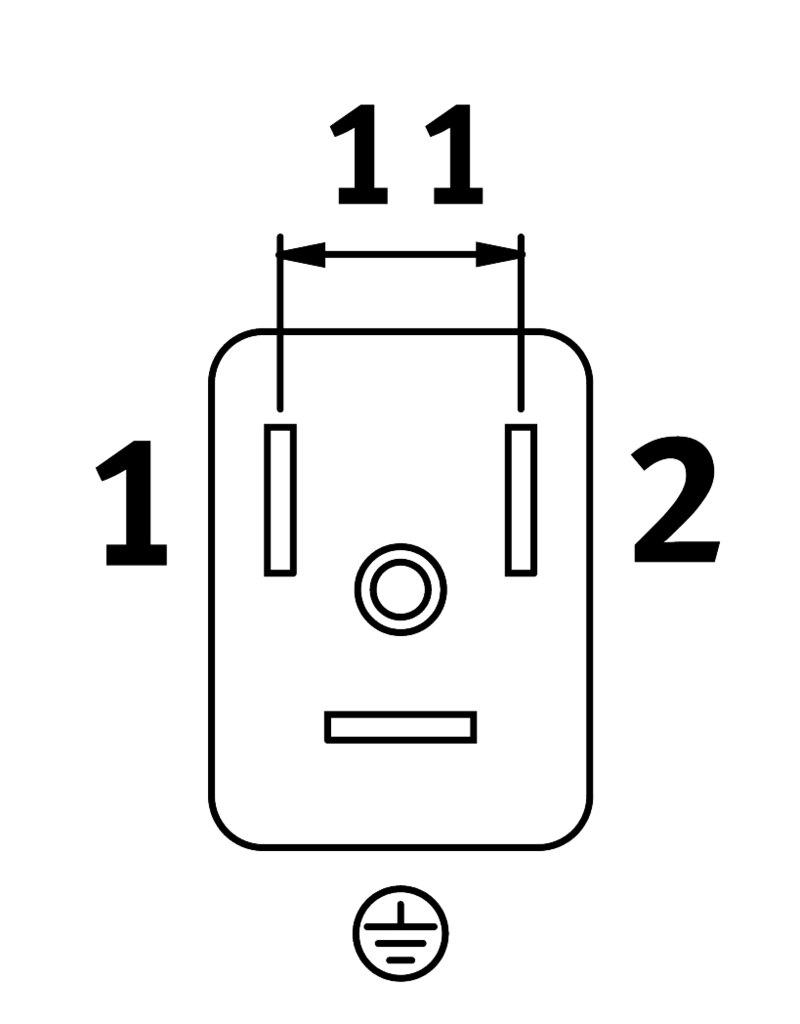

Reference imageConfirm configuration by manufacturer part number.
Festo
34431
Plug socket MSSD-F
The Festo 34431 is an industrial component designed for mounting on an air solenoid valve using an M3 central screw with any mounting position and a product weight of 17 g. Featuring a 3-pin electrical connection with an angled socket, a square design, and a screw terminal, this part operates across a DC and AC voltage range of 0 V to 250 V with a current rating of 16 A at 40° C. It includes a protective earth connection, a Pg9 cable fitting, a cable diameter of 6 mm to 8 mm, and a nominal conductor cross section of 1.5 mm², achieving an IP65 degree of protection in the mounted state via its angled cable outlet that can be rotated through 180°. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 34431
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 34431.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Type of mounting
- On air solenoid valve with M3 central screw
- Cable outlet
- Angled
- Note on cable outlet
- Can be rotated through 180°
- Mounting position
- Any
- Product weight
- 17 g
- Electrical connection
- 3-pin | Angled socket | Rectangular design MSF
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, number of pins/wires
- 3
- Electrical connection 2
- Screw terminal
- DC operating voltage range
- 0 V...250 V
- Operating voltage range AC
- 0 V...250 V
- Current rating at 40° C
- 16 A
- Protective earth connection
- Available
- Cable tting
- Pg9
- Cable diameter
- 6 mm...8 mm
- Nominal conductor cross section
- 1.5 mm²
- Degree of protection
- IP65
- Note on degree of protection
- In mounted state
- Ambient temperature
- -25 °C...90 °C
- CE marking (see declaration of conformity)
- As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions | To UK instructions for electrical equipment
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Housing material
- Polymer
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 34431. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
