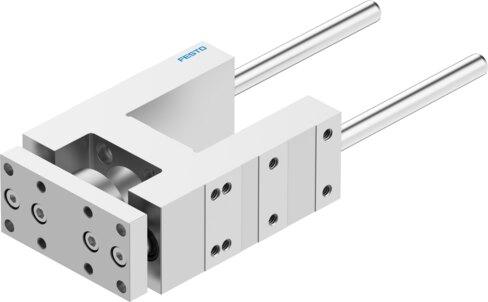

Reference imageConfirm configuration by manufacturer part number.
Festo
34481
Guide unit FENG-32- -GF
The Festo 34481 is an industrial guide component featuring a size 32 specification, a stroke range from 10 mm to 500 mm, and a plain-bearing guide designed for mounting in any position with internal threads. Constructed with a wrought aluminum alloy anodized housing and yoke plate alongside a high-alloy steel guide component, this unit operates within an ambient temperature range of -20 °C to 80 °C and exhibits a displacement force of 30 N. It complies with VDMA24364-B2-L LABS conformity and RoHS material requirements, while explosion prevention and protection adhere strictly to the information provided on the certificate. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 34481
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 34481.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Stroke
- 10 mm...500 mm
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Displacement force
- 30 N
- Moving mass at 0 mm stroke
- 478 g
- Additional moving mass per 10 mm stroke
- 17 g
- Basic weight with 0 mm stroke
- 1570 g
- Additional weight per 10 mm stroke
- 17 g
- Center of gravity of moving mass with 0 mm stroke
- 43 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.5 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- High-alloy steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Wrought aluminum alloy, anodized
