Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

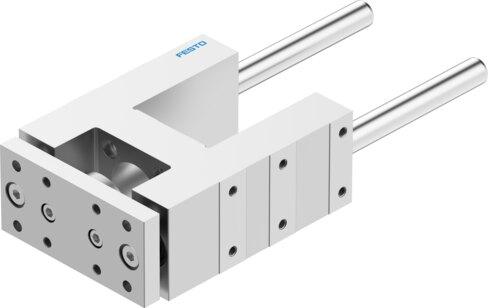

Reference imageConfirm configuration by manufacturer part number.
Festo
34482
Guide unit FENG-40- -GF
This Festo industrial component, part number 34482, features a size 40 structural guide design with a plain-bearing guide and a stroke ranging from 10 mm to 500 mm. Constructed with an anodized wrought aluminum alloy housing and yoke plate, high-alloy steel guide components, and internal thread mounting, it operates within an ambient temperature range of -20 °C to 80 °C. The unit has a basic weight of 2480 g at 0 mm stroke, a displacement force of 30 N, and complies with VDMA24364-B2-L LABS conformity and RoHS material requirements. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 34482
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 34482.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Stroke
- 10 mm...500 mm
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Displacement force
- 30 N
- Moving mass at 0 mm stroke
- 782 g
- Additional moving mass per 10 mm stroke
- 31 g
- Basic weight with 0 mm stroke
- 2480 g
- Additional weight per 10 mm stroke
- 31 g
- Center of gravity of moving mass with 0 mm stroke
- 57 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.7 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- High-alloy steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Wrought aluminum alloy, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 34482. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
