Festo
34487

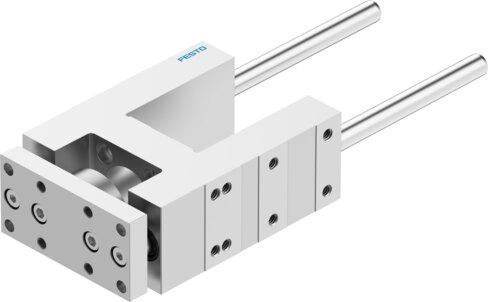

Guide unit FENG-32- -KF
The Festo part number 34487 is an industrial guide component featuring a size 32 configuration with a stroke range of 10 mm to 500 mm and a recirculating ball bearing guide. This unit operates in any mounting position within an ambient temperature range of -20 °C to 80 °C, supporting a displacement force of 15 N and a moving mass of 483 g at 0 mm stroke. It handles a maximum dynamic force Fy and Fz of 750 N, static force Fy and Fz of 1020 N, dynamic torque Mx of 28 Nm, static moment Mx of 38 Nm, and dynamic torque My and Mz of 34 Nm alongside static moment My and Mz of 46 Nm. Explosion prevention adheres to the provided certificate, and LABS conformity complies with VDMA24364-B2-L. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 34487
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 34487.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Stroke
- 10 mm...500 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 750 N
- Max. force Fy static
- 1020 N
- Max. force Fz
- 750 N
- Max. force Fz static
- 1020 N
- Max. torque Mx
- 28 Nm
- Max. static moment Mx
- 38 Nm
- Max. torque My
- 34 Nm
- Max. static moment My
- 46 Nm
- Max. torque Mz
- 34 Nm
- Max. static moment Mz
- 46 Nm
- Displacement force
- 15 N
- Moving mass at 0 mm stroke
- 483 g
- Additional moving mass per 10 mm stroke
- 18 g
- Basic weight with 0 mm stroke
- 1530 g
- Additional weight per 10 mm stroke
- 18 g
- Center of gravity of moving mass with 0 mm stroke
- 43 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.5 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Wrought aluminum alloy, anodized
