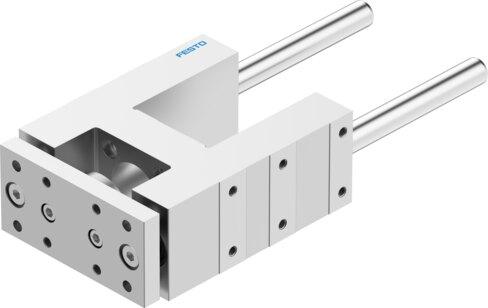

Reference imageConfirm configuration by manufacturer part number.
Festo
34488
Guide unit FENG-40- -KF
The Festo part number 34488 is a size 40 structural design guide featuring a recirculating ball bearing guide and an adjustable stroke ranging from 10 mm to 500 mm with any mounting position. This component handles a maximum force Fy and Fz of 1000 N (with static forces up to 1260 N), maximum torques Mx, My, and Mz of 44 Nm, 52 Nm, and 52 Nm respectively, and maximum static moments of 55 Nm for Mx and 65 Nm for My and Mz. Operating within an ambient temperature range of -20 °C to 80 °C, it has a displacement force of 15 N, a moving mass of 792 g at 0 mm stroke, VDMA24364-B2-L LABS conformity, and explosion protection adhering to the certificate information. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 34488
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 34488.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Stroke
- 10 mm...500 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 1000 N
- Max. force Fy static
- 1260 N
- Max. force Fz
- 1000 N
- Max. force Fz static
- 1260 N
- Max. torque Mx
- 44 Nm
- Max. static moment Mx
- 55 Nm
- Max. torque My
- 52 Nm
- Max. static moment My
- 65 Nm
- Max. torque Mz
- 52 Nm
- Max. static moment Mz
- 65 Nm
- Displacement force
- 15 N
- Moving mass at 0 mm stroke
- 792 g
- Additional moving mass per 10 mm stroke
- 32 g
- Basic weight with 0 mm stroke
- 2370 g
- Additional weight per 10 mm stroke
- 32 g
- Center of gravity of moving mass with 0 mm stroke
- 57 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.7 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Wrought aluminum alloy, anodized
