Festo
34489

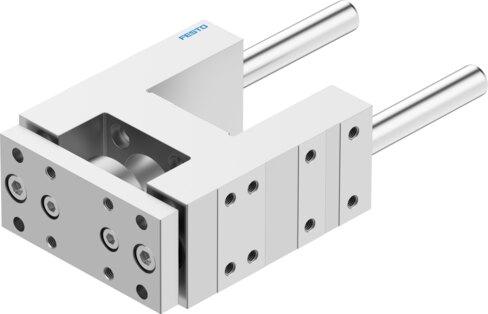

Guide unit FENG-50- -KF
The Festo part number 34489 is an industrial guide unit featuring a size 50 design with a recirculating ball bearing guide and an adjustable stroke ranging from 10 mm to 500 mm. This component operates across an ambient temperature range of -20 °C to 80 °C in any mounting position while supporting a moving mass of 1430 g at 0 mm stroke and a displacement force of 15 N. It accommodates maximum dynamic forces of 1260 N for Fy and Fz, static forces of 1600 N for Fy and Fz, dynamic torques of 65 Nm for Mx and 70 Nm for My and Mz, and static moments of 83 Nm for Mx and 89 Nm for My and Mz, while maintaining VDMA24364-B2-L LABS conformity and explosion protection in accordance with its certificate. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 34489
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 34489.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 50
- Stroke
- 10 mm...500 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 1260 N
- Max. force Fy static
- 1600 N
- Max. force Fz
- 1260 N
- Max. force Fz static
- 1600 N
- Max. torque Mx
- 65 Nm
- Max. static moment Mx
- 83 Nm
- Max. torque My
- 70 Nm
- Max. static moment My
- 89 Nm
- Max. torque Mz
- 70 Nm
- Max. static moment Mz
- 89 Nm
- Displacement force
- 15 N
- Moving mass at 0 mm stroke
- 1430 g
- Additional moving mass per 10 mm stroke
- 49 g
- Basic weight with 0 mm stroke
- 4030 g
- Additional weight per 10 mm stroke
- 49 g
- Center of gravity of moving mass with 0 mm stroke
- 60 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.7 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Wrought aluminum alloy, anodized
