Festo
34491

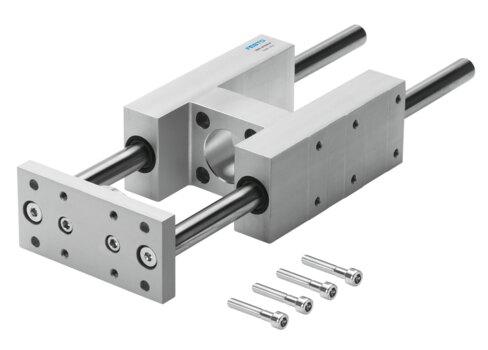

Guide unit FENG-80- -KF
The Festo part number 34491 is an industrial guide unit featuring a size of 80 and an adjustable stroke ranging from 10 mm to 500 mm with an unrestricted mounting position. Incorporating a recirculating ball bearing guide, this structural design delivers a maximum dynamic force of 2300 N, a static force of 3120 N, and maximum static moments of 231 Nm for Mx and 259 Nm for My and Mz. It operates within an ambient temperature range of -20 °C to 80 °C, exhibits a displacement force of 40 N, and includes a moving mass of 4990 g at 0 mm stroke alongside VDMA24364-B2-L LABS conformity and explosion protection requiring observation of the certificate. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 34491
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 34491.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 80
- Stroke
- 10 mm...500 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 2300 N
- Max. force Fy static
- 3120 N
- Max. force Fz
- 2300 N
- Max. force Fz static
- 3120 N
- Max. torque Mx
- 170 Nm
- Max. static moment Mx
- 231 Nm
- Max. torque My
- 191 Nm
- Max. static moment My
- 259 Nm
- Max. torque Mz
- 191 Nm
- Max. static moment Mz
- 259 Nm
- Displacement force
- 40 N
- Moving mass at 0 mm stroke
- 4990 g
- Additional moving mass per 10 mm stroke
- 77 g
- Basic weight with 0 mm stroke
- 10430 g
- Additional weight per 10 mm stroke
- 77 g
- Center of gravity of moving mass with 0 mm stroke
- 54 mm
- Center of gravity of moving mass with 10 mm stroke
- 3.9 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Quenched and tempered steel
