Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

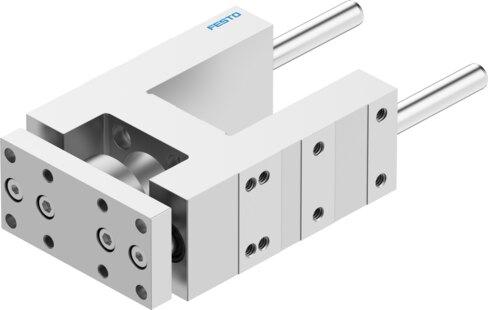

Reference imageConfirm configuration by manufacturer part number.
Festo
34493
Guide unit FENG-32-50-KF
The Festo 34493 is an industrial component guide featuring a size 32 and a 50 mm stroke with a recirculating ball bearing guide. Weighing 1620 g with a displacement force of 15 N, it accommodates any mounting position and operates within an ambient temperature range of -20 °C to 80 °C while supporting maximum dynamic and static forces of 750 N and 1020 N, respectively. This unit handles maximum dynamic and static moments up to 38 Nm on the Mx axis and 46 Nm on the My and Mz axes, and requires observation of the certificate for explosion prevention and protection alongside VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 34493
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 34493.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Stroke
- 50 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 750 N
- Max. force Fy static
- 1020 N
- Max. force Fz
- 750 N
- Max. force Fz static
- 1020 N
- Max. torque Mx
- 28 Nm
- Max. static moment Mx
- 38 Nm
- Max. torque My
- 34 Nm
- Max. static moment My
- 46 Nm
- Max. torque Mz
- 34 Nm
- Max. static moment Mz
- 46 Nm
- Displacement force
- 15 N
- Product weight
- 1620 g
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Wrought aluminum alloy, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 34493. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
