Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

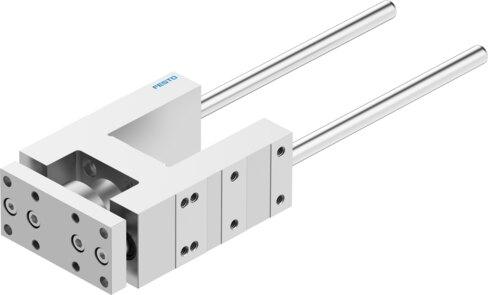

Reference imageConfirm configuration by manufacturer part number.
Festo
34495
Guide unit FENG-32-160-KF
The Festo 34495 is an industrial guide component featuring a size 32 specification, a 160 mm stroke, and a recirculating ball bearing guide supporting any mounting position. It accommodates a product weight of 1,818 g, a displacement force of 15 N, an ambient temperature range of -20 °C to 80 °C, and VDMA24364-B2-L LABS conformity while requiring adherence to certificate instructions for explosion prevention and protection. This unit withstands maximum dynamic forces of 750 N for both Fy and Fz, static forces of 1,020 N for Fy and Fz, dynamic torques of 28 Nm (Mx) and 34 Nm (My and Mz), and static moments of 38 Nm (Mx) and 46 Nm (My and Mz). Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 34495
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 34495.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Stroke
- 160 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 750 N
- Max. force Fy static
- 1020 N
- Max. force Fz
- 750 N
- Max. force Fz static
- 1020 N
- Max. torque Mx
- 28 Nm
- Max. static moment Mx
- 38 Nm
- Max. torque My
- 34 Nm
- Max. static moment My
- 46 Nm
- Max. torque Mz
- 34 Nm
- Max. static moment Mz
- 46 Nm
- Displacement force
- 15 N
- Product weight
- 1818 g
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Wrought aluminum alloy, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 34495. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
