Festo
34499

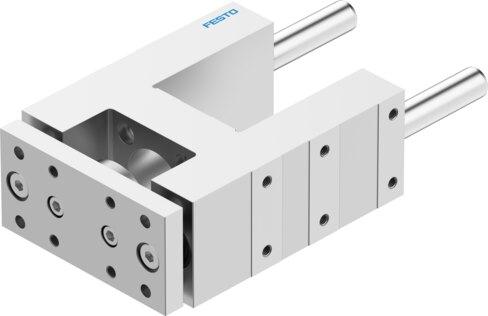

Guide unit FENG-40-50-KF
The Festo part number 34499 is an industrial guide featuring a size 40 design with a 50 mm stroke and an integrated recirculating ball bearing guide. This component supports any mounting position, operates within an ambient temperature range of -20 °C to 80 °C, and weighs 2530 g with a displacement force of 15 N. It handles a maximum force Fy and Fz of 1000 N (1260 N static), maximum torques Mx of 44 Nm (55 Nm static) and My/Mz of 52 Nm (65 Nm static), conforms to VDMA24364-B2-L for LABS (PWIS), and requires adherence to certificate instructions for explosion prevention and protection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 34499
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 34499.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Stroke
- 50 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 1000 N
- Max. force Fy static
- 1260 N
- Max. force Fz
- 1000 N
- Max. force Fz static
- 1260 N
- Max. torque Mx
- 44 Nm
- Max. static moment Mx
- 55 Nm
- Max. torque My
- 52 Nm
- Max. static moment My
- 65 Nm
- Max. torque Mz
- 52 Nm
- Max. static moment Mz
- 65 Nm
- Displacement force
- 15 N
- Product weight
- 2530 g
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Wrought aluminum alloy, anodized
