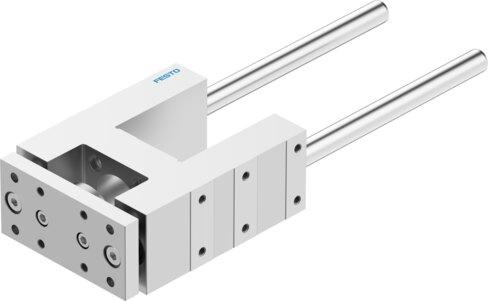

Reference imageConfirm configuration by manufacturer part number.
Festo
34501
Guide unit FENG-40-160-KF
The Festo part number 34501 is an industrial guide component featuring a size 40 and a 160 mm stroke with a recirculating ball bearing guide. This unit operates within an ambient temperature range of -20 °C to 80 °C, supports any mounting position, and conforms to VDMA24364-B2-L LABS (PWIS) standards while requiring observation of certificate details for explosion prevention and protection. It weighs 2882 g, exhibits a displacement force of 15 N, and handles maximum dynamic forces of 1000 N alongside static forces of 1260 N for both Fy and Fz directions. Furthermore, the unit accommodates dynamic torques of 44 Nm (Mx), 52 Nm (My), and 52 Nm (Mz), with maximum static moments of 55 Nm for Mx and 65 Nm for both My and Mz. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 34501
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 34501.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Stroke
- 160 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 1000 N
- Max. force Fy static
- 1260 N
- Max. force Fz
- 1000 N
- Max. force Fz static
- 1260 N
- Max. torque Mx
- 44 Nm
- Max. static moment Mx
- 55 Nm
- Max. torque My
- 52 Nm
- Max. static moment My
- 65 Nm
- Max. torque Mz
- 52 Nm
- Max. static moment Mz
- 65 Nm
- Displacement force
- 15 N
- Product weight
- 2882 g
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Wrought aluminum alloy, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 34501. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
