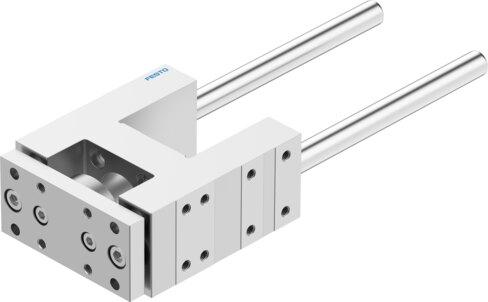

Reference imageConfirm configuration by manufacturer part number.
Festo
34508
Guide unit FENG-50-160-KF
The Festo 34508 is an industrial guide component featuring a size 50 configuration and a 160 mm stroke. Engineered with a recirculating ball bearing guide supporting any mounting position, it handles a product weight of 4814 g alongside a displacement force of 15 N. This unit accommodates maximum dynamic forces of 1260 N for both Fy and Fz, static forces of 1600 N for Fy and Fz, and maximum moments of 65 Nm for Mx and 70 Nm for My and Mz, with static moments reaching 83 Nm for Mx and 89 Nm for My and Mz across an ambient temperature range of -20 °C to 80 °C. Explosion protection requires observing the certificate information, and LABS conformity follows VDMA24364-B2-L. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 34508
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 34508.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 50
- Stroke
- 160 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 1260 N
- Max. force Fy static
- 1600 N
- Max. force Fz
- 1260 N
- Max. force Fz static
- 1600 N
- Max. torque Mx
- 65 Nm
- Max. static moment Mx
- 83 Nm
- Max. torque My
- 70 Nm
- Max. static moment My
- 89 Nm
- Max. torque Mz
- 70 Nm
- Max. static moment Mz
- 89 Nm
- Displacement force
- 15 N
- Product weight
- 4814 g
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Wrought aluminum alloy, anodized
