Festo
34510

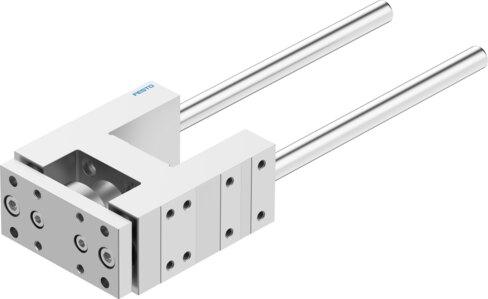

Guide unit FENG-50-250-KF
The Festo part number 34510 is an industrial component featuring a size 50 and a 250 mm stroke with a recirculating ball bearing guide and any mounting position. It weighs 5255 g, operates within an ambient temperature range of -20 °C to 80 °C, exhibits a displacement force of 15 N, and complies with VDMA24364-B2-L LABS conformity while requiring observation of certificate information for explosion prevention and protection. This structural design handles a maximum dynamic force Fy and Fz of 1260 N, a maximum static force Fy and Fz of 1600 N, maximum dynamic moments Mx, My, and Mz of 65 Nm, 70 Nm, and 70 Nm, and maximum static moments Mx of 83 Nm alongside My and Mz of 89 Nm. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 34510
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 34510.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 50
- Stroke
- 250 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 1260 N
- Max. force Fy static
- 1600 N
- Max. force Fz
- 1260 N
- Max. force Fz static
- 1600 N
- Max. torque Mx
- 65 Nm
- Max. static moment Mx
- 83 Nm
- Max. torque My
- 70 Nm
- Max. static moment My
- 89 Nm
- Max. torque Mz
- 70 Nm
- Max. static moment Mz
- 89 Nm
- Displacement force
- 15 N
- Product weight
- 5255 g
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Wrought aluminum alloy, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 34510. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
