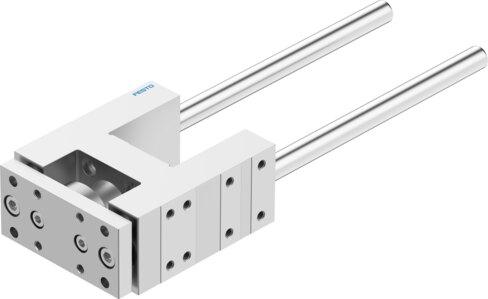

Reference imageConfirm configuration by manufacturer part number.
Festo
34512
Guide unit FENG-50-500-KF
The Festo part number 34512 is an industrial component featuring a size 50 structural design with a 500 mm stroke and an integrated recirculating ball bearing guide supporting any mounting position. It operates within an ambient temperature range of -20 °C to 80 °C, delivering a displacement force of 15 N alongside maximum dynamic and static forces of 1260 N and 1600 N for both Fy and Fz axes. Weighing 6480 g, the unit adheres to VDMA24364-B2-L LABS conformity and accommodates maximum dynamic and static moments of 65 Nm and 83 Nm for Mx, and 70 Nm and 89 Nm for My and Mz, while requiring adherence to specific certificate information for explosion prevention and protection. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 34512
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 34512.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 50
- Stroke
- 500 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 1260 N
- Max. force Fy static
- 1600 N
- Max. force Fz
- 1260 N
- Max. force Fz static
- 1600 N
- Max. torque Mx
- 65 Nm
- Max. static moment Mx
- 83 Nm
- Max. torque My
- 70 Nm
- Max. static moment My
- 89 Nm
- Max. torque Mz
- 70 Nm
- Max. static moment Mz
- 89 Nm
- Displacement force
- 15 N
- Product weight
- 6480 g
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Wrought aluminum alloy, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 34512. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
