Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

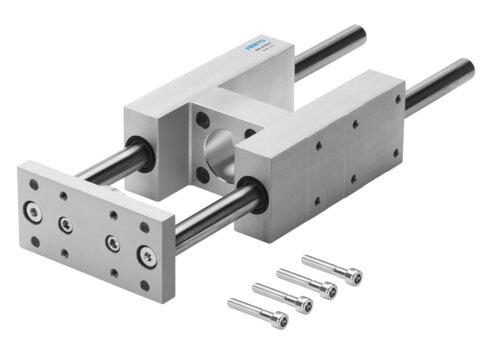

Reference imageConfirm configuration by manufacturer part number.
Festo
34519
Guide unit FENG-63-400-KF
The Festo part number 34519 is an industrial guide unit featuring a size 63 designation and a 400 mm stroke with a recirculating ball bearing guide. This structural design supports any mounting position, operates within an ambient temperature range of -20 °C to 80 °C, and maintains a product weight of 7370 g with a displacement force of 15 N. It accommodates a max force Fy and Fz of 1260 N (1600 N static), max moments Mx of 75 Nm (95 Nm static), and My and Mz of 90 Nm (115 Nm static), while explosion prevention requires adherence to certificate information and LABS conformity follows VDMA24364-B2-L. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 34519
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 34519.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 63
- Stroke
- 400 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 1260 N
- Max. force Fy static
- 1600 N
- Max. force Fz
- 1260 N
- Max. force Fz static
- 1600 N
- Max. torque Mx
- 75 Nm
- Max. static moment Mx
- 95 Nm
- Max. torque My
- 90 Nm
- Max. static moment My
- 115 Nm
- Max. torque Mz
- 90 Nm
- Max. static moment Mz
- 115 Nm
- Displacement force
- 15 N
- Product weight
- 7370 g
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Wrought aluminum alloy, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 34519. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
