Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
34521

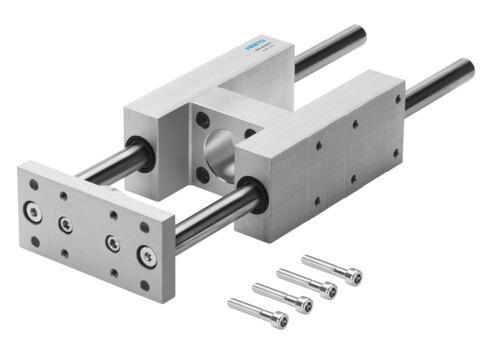

Guide unit FENG-80-50-KF
The Festo part number 34521 is an industrial component featuring a size 80 structural design with a 50 mm stroke and an integrated recirculating ball bearing guide that operates in any mounting position. It withstands a maximum displacement force of 40 N, a maximum dynamic force Fy and Fz of 2300 N, and maximum static forces Fy and Fz of 3120 N, while supporting maximum torques Mx, My, and Mz of 170 Nm, 191 Nm, and 191 Nm respectively, alongside static moments Mx of 231 Nm and My and Mz of 259 Nm. Weighing 10815 g, the unit functions within an ambient temperature range of -20 °C to 80 °C, complies with VDMA24364-B2-L LABS (PWIS) conformity, and incorporates explosion prevention and protection in accordance with its certificate. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 34521
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 34521.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 80
- Stroke
- 50 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 2300 N
- Max. force Fy static
- 3120 N
- Max. force Fz
- 2300 N
- Max. force Fz static
- 3120 N
- Max. torque Mx
- 170 Nm
- Max. static moment Mx
- 231 Nm
- Max. torque My
- 191 Nm
- Max. static moment My
- 259 Nm
- Max. torque Mz
- 191 Nm
- Max. static moment Mz
- 259 Nm
- Displacement force
- 40 N
- Product weight
- 10815 g
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Quenched and tempered steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 34521. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
