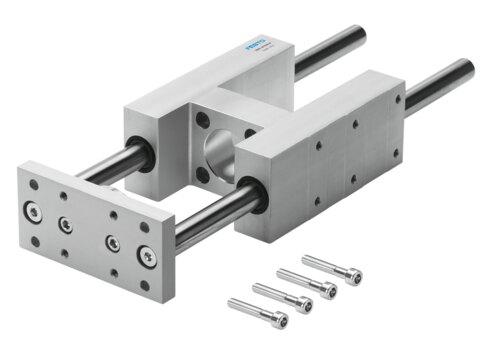

Reference imageConfirm configuration by manufacturer part number.
Festo
34527
Guide unit FENG-80-400-KF
The Festo 34527 is a size 80 industrial guide featuring a 400 mm stroke and a recirculating ball bearing guide designed for installation in any mounting position. It accommodates a maximum dynamic force Fy and Fz of 2300 N, a maximum static force Fy and Fz of 3120 N, and handles maximum dynamic torques Mx, My, and Mz of 170 Nm, 191 Nm, and 191 Nm respectively, alongside static moments reaching up to 259 Nm. Operating within an ambient temperature range of -20 °C to 80 °C, this 13510 g structural design exhibits a displacement force of 40 N, VDMA24364-B2-L LABS conformity, and explosion prevention governed by the certificate information. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 34527
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 34527.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 80
- Stroke
- 400 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 2300 N
- Max. force Fy static
- 3120 N
- Max. force Fz
- 2300 N
- Max. force Fz static
- 3120 N
- Max. torque Mx
- 170 Nm
- Max. static moment Mx
- 231 Nm
- Max. torque My
- 191 Nm
- Max. static moment My
- 259 Nm
- Max. torque Mz
- 191 Nm
- Max. static moment Mz
- 259 Nm
- Displacement force
- 40 N
- Product weight
- 13510 g
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Quenched and tempered steel
