Festo
34536

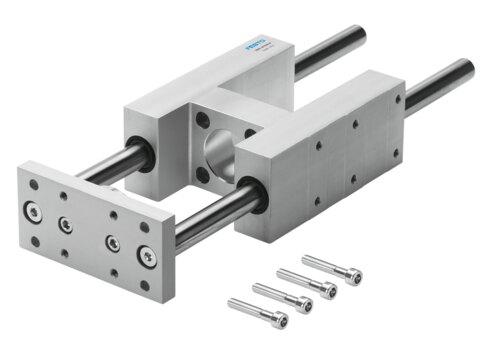

Guide unit FENG-100-500-KF
The Festo 34536 is a size 100 structural guide featuring a 500 mm stroke and an integrated recirculating ball bearing guide that accommodates any mounting position. It operates within an ambient temperature range of -20 °C to 80 °C, supporting a product weight of 16840 g and a displacement force of 40 N while handling maximum dynamic forces of 2300 N (Fy and Fz) and static forces of 3120 N (Fy and Fz). This unit withstands maximum moments of 198 Nm for Mx and 197 Nm for My and Mz, alongside maximum static moments of 268 Nm for Mx and 267 Nm for My and Mz, while meeting VDMA24364-B2-L LABS conformity and requiring adherence to certificate documentation for explosion prevention and protection. Submit your exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 34536
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 34536.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 100
- Stroke
- 500 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 2300 N
- Max. force Fy static
- 3120 N
- Max. force Fz
- 2300 N
- Max. force Fz static
- 3120 N
- Max. torque Mx
- 198 Nm
- Max. static moment Mx
- 268 Nm
- Max. torque My
- 197 Nm
- Max. static moment My
- 267 Nm
- Max. torque Mz
- 197 Nm
- Max. static moment Mz
- 267 Nm
- Displacement force
- 40 N
- Product weight
- 16840 g
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Quenched and tempered steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 34536. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
