Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
34547

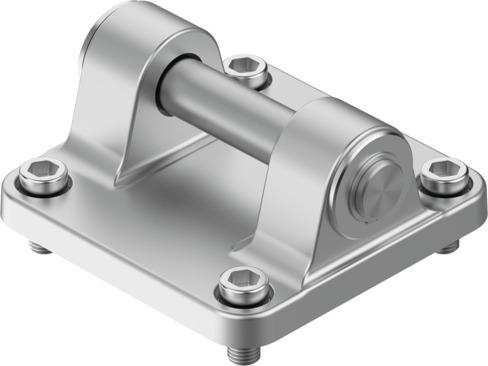

Clevis flange SNGB-160
The Festo part number 34547 is an industrial component featuring a size 160 specification and compliance with the ISO 15552 norm. Constructed with die-cast aluminum mounting material, galvanized steel bolts, a polymer bearing, galvanized steel discs, galvanized steel screws, and a galvanized spring steel fuse, this RoHS-compliant unit weighs 3445 g. It has a corrosion resistance class (CRC) rating of 2 for moderate corrosion stress, VDMA24364-B2-L LABS conformity, and an ambient temperature range of -40 °C to 90 °C. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 34547
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 34547.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 160
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -40 °C...90 °C
- Product weight
- 3445 g
- Note on materials
- RoHS compliant
- Mounting material
- Die-cast aluminum
- Bolt material
- Steel | Galvanized
- Material of bearing
- Polymer
- Disc material
- Steel, galvanized
- Material of screws
- Steel | Galvanized
- Fuse material
- Spring steel, galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 34547. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
