Festo
34572

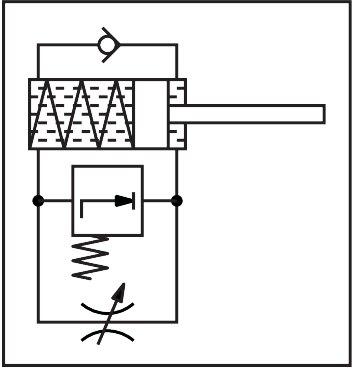

Shock absorber YSR-12-12-C
The Festo 34572 is a single-acting industrial component with a size of 12, a 12 mm stroke, and a pushing mode of operation featuring self-adjusting cushioning over a 12 mm cushioning length. This unit supports any mounting position, operates in ambient temperatures from -10 °C to 80 °C, and provides a maximum stop force of 1000 N alongside a maximum energy absorption of 10 J per stroke. Weighing 74 g with a CRC rating of 2 for moderate corrosion stress, it delivers a reset time of 0.2 s at room temperature and 1 s at minimum ambient temperature. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 34572
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 34572.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 12
- Stroke
- 12 mm
- Cushioning
- Self-adjusting
- Mounting position
- Any
- Position sensing
- None
- Max. impact velocity
- 3 m/s
- Reset time at room temperature
- 0.2 s
- Reset time at min. ambient temperature
- 1 s
- Mode of operation
- Pushing | Single-acting
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...80 °C
- Cushioning length
- 12 mm
- Max. stop force
- 1000 N
- Max. energy absorption per stroke
- 10 J
- Max. energy absorption per hour
- 36000 J
- Max. residual energy
- 0.05 J
- Resetting force
- 5 N
- Min. insertion force
- 35 N
- Product weight
- 74 g
- Load range
- 45 kg
- Type of mounting
- With locknut
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- Steel
- Piston rod material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 34572. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
