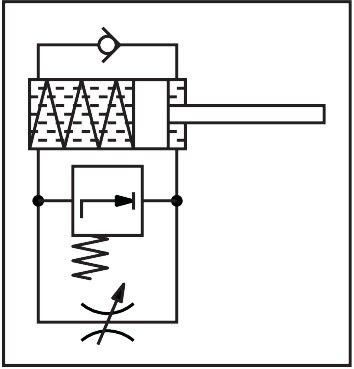

Reference imageConfirm configuration by manufacturer part number.
Festo
34574
Shock absorber YSR-20-25-C
The Festo 34574 is a single-acting industrial component featuring a size 20 designation, a 25 mm stroke, and pushing mode of operation with self-adjusting cushioning across a 25 mm cushioning length. It operates in any mounting position within an ambient temperature range of -10 °C to 80 °C, providing a max stop force of 3000 N, a max energy absorption of 60 J per stroke, and a maximum impact velocity of 3 m/s. This unit weighs 318 g, exhibits a corrosion resistance class of 2 for moderate stress, and requires a minimum insertion force of 100 N with no position sensing included. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 34574
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 34574.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 20
- Stroke
- 25 mm
- Cushioning
- Self-adjusting
- Mounting position
- Any
- Position sensing
- None
- Max. impact velocity
- 3 m/s
- Reset time at room temperature
- 0.3 s
- Reset time at min. ambient temperature
- 1 s
- Mode of operation
- Pushing | Single-acting
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...80 °C
- Cushioning length
- 25 mm
- Max. stop force
- 3000 N
- Max. energy absorption per stroke
- 60 J
- Max. energy absorption per hour
- 92000 J
- Max. residual energy
- 0.32 J
- Resetting force
- 10 N
- Min. insertion force
- 100 N
- Product weight
- 318 g
- Load range
- 120 kg
- Type of mounting
- With locknut
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- Steel, galvanized
- Piston rod material
- High-alloy steel
