Festo
34634

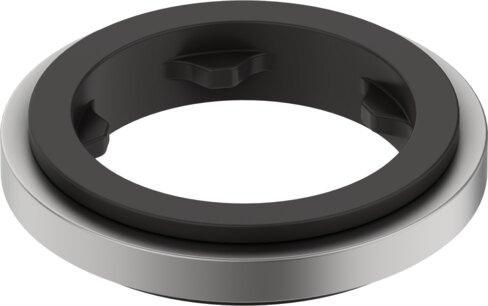

Sealing ring OL-M5
The Festo part number 34634 is an industrial component featuring an M5 pneumatic connection and aluminum stops with HNBR seals, weighing 0.06 g with RoHS-compliant materials. Built to ISO 16030 norms, it operates across a temperature range of -40 °C to 100 °C and an operating pressure range of -0.095 MPa to 3 MPa (-0.95 bar to 30 bar, -13.775 psi to 435 psi). The unit offers a moderate corrosion resistance class (CRC 2), VDMA24364-B2-L LABS conformity, and suitability for Li-ion battery production with reduced Cu/Zn/Ni values (F1a), alongside manual tightening at room temperature utilizing a nominal torque of 2.5 Nm with a ±20% tolerance. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 34634
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 34634.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- ISO 16030
- Operating pressure for entire temperature range
- -0.095 MPa...3 MPa | -0.95 bar...30 bar | -13.775 psi...435 psi
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- Ambient temperature
- -40 °C...100 °C
- Manual tightening at RT
- Yes
- Nominal tightening torque
- 2.5 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 0.06 g
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Stops material
- Aluminum
- Seals material
- HNBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 34634. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
