Festo
34636

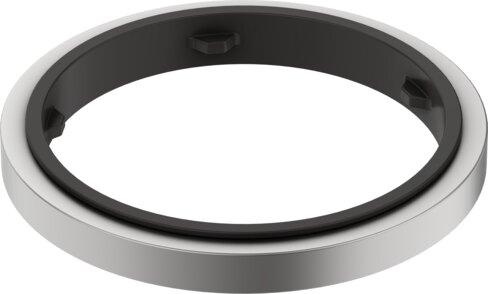

Sealing ring OL-3/8
The Festo part number 34636 is an industrial component featuring an aluminum stops material and HNBR seals with a G3/8 pneumatic connection. Operating within a pressure range of -0.095 MPa to 3 MPa and an ambient temperature range of -40 °C to 100 °C, this RoHS-compliant unit conforms to ISO 16030 and VDMA24364-B2-L LABS conformity. It provides a corrosion resistance class of 2, a nominal tightening torque of 13 Nm with a ±20% tolerance, and suitability for Li-ion battery production with reduced Cu/Zn/Ni values. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 34636
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 34636.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- ISO 16030
- Operating pressure for entire temperature range
- -0.095 MPa...3 MPa | -0.95 bar...30 bar | -13.775 psi...435 psi
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- Ambient temperature
- -40 °C...100 °C
- Manual tightening at RT
- Yes
- Nominal tightening torque
- 13 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 0.57 g
- Pneumatic connection
- G3/8
- Note on materials
- RoHS compliant
- Stops material
- Aluminum
- Seals material
- HNBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 34636. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
