3464

Name: Festo 3464 Pneumatic timer VZOA-3-1/4
Brand: Festo

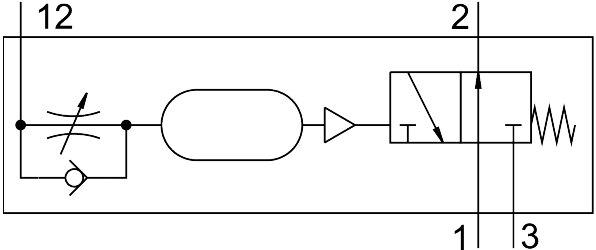

Pneumatic timer VZOA-3-1/4

The Festo part number 3464 is an industrial component featuring an operating pressure range of 0 MPa to 1 MPa (0 bar to 10 bar) and a normal nominal flow rate of 600 l/min normalized to DIN 1343. This unit provides an adjustable delay time from 0 s to 30 s and is rated for ATEX Zone 1, Zone 2, Zone 21, and Zone 22 explosion prevention and protection. It utilizes compressed air as an operating medium per ISO 8573-1:2010 [7:-:-] with oil lubrication possible and required for further use, while incorporating VDMA24364-B2-L LABS conformity, RoHS compliant materials, G1/8 and G1/4 pneumatic connections, and through-hole mounting. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 3464
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 3464.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Operating pressure: 0 MPa...1 MPa | 0 bar...10 bar
Normal nominal ow rate (normalized to DIN 1343): 600 l/min
Adjustable delay time: 0 s...30 s
Explosion prevention and protection: Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364-B2-L
Type of mounting: With through-hole
Pneumatic connection: G1/8 | G1/4
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 3464. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
