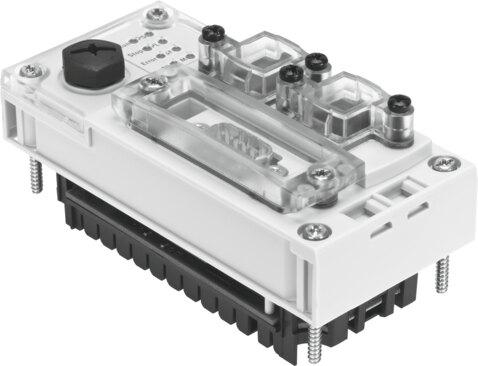

Reference imageConfirm configuration by manufacturer part number.
Festo
3472425
Control block CPX-CEC-S1-V3
Festo Control block CPX-CEC-S1-V3, part number 3472425, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 3472425
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3472425.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Protocol
- CODESYS level 2 | EasyIP | Modbus® TCP | TCP/IP
- Dimensions W x L x H
- 50 mm x 107 mm x 55 mm
- Product weight
- 135 g
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 95% | Non-condensating
- Degree of protection
- IP65 | IP67
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Max. cable length
- 30 m
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Housing material
- PA-reinforced | PC
- LED display (product-specic)
- ERR: PLC runtime error | M: Modify/force enabled | PL: Load supply | PS: electronics supply, sensor supply | RUN: PLC status | SF: System fault | STOP: PLC status
- LED display (bus-specic)
- TP: Link/traffic
- Device-specic diagnostics
- Channel-oriented and module-oriented diagnostics | Undervoltage/short circuit of modules | Diagnostic memory
- Control elements
- Rotary switch for RUN/Stop
- IP address setting
- DHCP | Via CODESYS | Via MMI
- Ethernet interface
- RJ 45 (socket, 8-pin)
- Ethernet, number
- 1
- Ethernet, supported protocols
- TCP/IP, EasyIP, Modbus TCP
