Festo
3473128

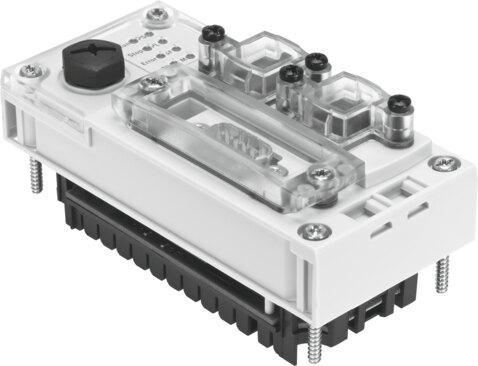

Control block CPX-CEC-C1-V3
Manufactured by Festo, part number 3473128 is an industrial component measuring 50 mm x 107 mm x 55 mm with a product weight of 135 g, featuring a PA-reinforced and PC housing rated to IP65 and IP67 with CRC 2 moderate corrosion stress. It supports CODESYS level 2, EasyIP, Modbus TCP, and TCP/IP protocols alongside a 9-pin Sub-D CAN bus fieldbus interface, operating within an ambient temperature range of -5 °C to 50 °C and 95% non-condensating relative air humidity. Diagnostic capabilities include channel-oriented and module-oriented diagnostics, undervoltage and short circuit module detection, diagnostic memory, and product-specific and bus-specific LED displays. Please submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3473128
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3473128.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Protocol
- CODESYS level 2 | EasyIP | Modbus® TCP | TCP/IP
- Dimensions W x L x H
- 50 mm x 107 mm x 55 mm
- Product weight
- 135 g
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 95% | Non-condensating
- Degree of protection
- IP65 | IP67
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Housing material
- PA-reinforced | PC
- LED display (product-specic)
- ERR: PLC runtime error | M: Modify/force enabled | PL: Load supply | PS: electronics supply, sensor supply | RUN: PLC status | SF: System fault | STOP: PLC status
- LED display (bus-specic)
- TP: Link/traffic
- Device-specic diagnostics
- Channel-oriented and module-oriented diagnostics | Undervoltage/short circuit of modules | Diagnostic memory
- Control elements
- DIL switch for CAN termination | Rotary switch for RUN/Stop
- IP address setting
- DHCP | Via CODESYS | Via MMI
- Fieldbus interface, type
- CAN bus
- Fieldbus interface, connection technology
- Plug | Sub-D | 9-pin
