Festo
3482805

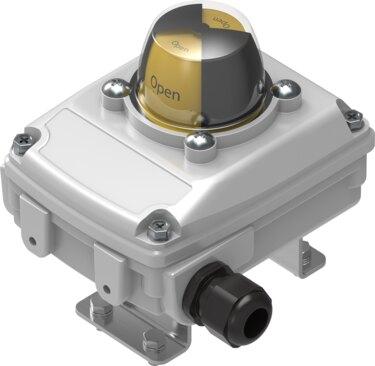

Limit switch box SRBC-CA3-YR90-MW-22A-1W-C2P20
The Festo industrial component, part number 3482805, utilizes a mechanical and electrical measuring principle featuring an Omron SS-5 microswitch with a single-pin toggle switch function and contact-based switching output. It operates within a voltage range of 0 V to 230 V AC and 0 V to 30 V DC, supporting a maximum output current of 3 A for both AC and DC, and functions across an ambient temperature range of -20 °C to 80 °C. This RoHS-compliant unit achieves a Safety Integrity Level of SIL 3, holds c CSA us (OL) certification, features Eurocert certificate SIL202587141, and carries CE, UKCA, and KC-EMV markings. Connections are made via a straight terminal strip using spring-loaded terminals and screw terminals. Request a formal quote for this exact part number, required quantities, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3482805
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3482805.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- c CSA us (OL)
- CE marking (see declaration of conformity)
- As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions | To UK instructions for electrical equipment
- KC characters
- KC-EMV
- Certicate issuing authority
- Eurocert. SIL202587141
- Note on materials
- RoHS compliant
- Safety integrity level (SIL)
- SIL 3
- Measuring principle
- Mechanical/electrical
- Ambient temperature
- -20 °C...80 °C
- Switching output
- Contact-based
- Switching element function
- Toggle switch, single-pin
- Max. output current AC
- 3 A
- Max. output current DC
- 3 A
- Operating voltage range AC
- 0 V...230 V
- DC operating voltage range
- 0 V...30 V
- Microswitch type
- Omron SS-5
- Electrical connection
- Screw terminal
- Electrical connection 1, connection type
- Terminal strip
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- Spring-loaded terminal
- Electrical connection 1, number of pins/wires
- 10
- Closable nominal conductor cross-section
- 0.25 mm²...2.5 mm²
- Cable tting
- M20x1.5
- Approved cable diameter
- 5 mm...13 mm
- Dimensions W x L x H
- 127 mm x 98 mm x 122 mm
- Connection point for positioner and position sensor conforms to
- VDI/VDE 3845 Size AA 1
- Mounting position
- Any
- Product weight
- 800 g
- Housing colour
- Gray
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3482805. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
