3482807

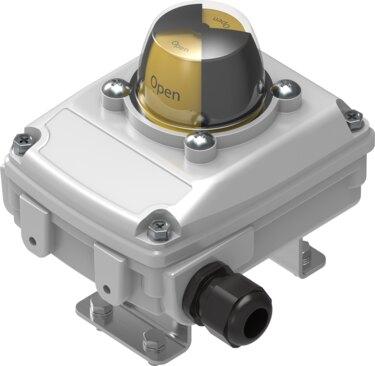

Name: Festo 3482807 Limit switch box SRBC-CA3-YR90-N-20N-ZC-C2P20-EX6
Brand: Festo

Limit switch box SRBC-CA3-YR90-N-20N-ZC-C2P20-EX6

The Festo part number 3482807 is an industrial component featuring an RCM compliance mark, KC-EMV approval, and CE and UKCA markings in accordance with EMC, explosion protection (ATEX/EX), and RoHS directives. Certified by Eurocert under SIL202587141, this intrinsically safe device supports a maximum input voltage Vi of 16 V with an effective internal inductance Li of 100 µH and internal capacitance Ci of 100 nF. It provides explosion prevention and protection for gas categories II 1G (Ex ia IIC T6/T5 Ga) and dust categories II 1D (Ex ia IIIC Txx°C Da), covering Zones 0, 1, 2, 20, 21, and 22 across ATEX, CN, IEC-EX, and UKEX standards, with explosive ambient temperatures and input parameters specified in the ATEX and IECEx certificates. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 3482807
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 3482807.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: RCM compliance mark
CE marking (see declaration of conformity): As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | acc. to UK EX instructions | To UK RoHS instructions
KC characters: KC-EMV
Explosion prevention and protection: Zone 0 (ATEX) | Zone 0 (CN) | Zone 0 (IEC-EX) | Zone 0 (UKEX) | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 20 (ATEX) | Zone 20 (CN) | Zone 20 (IEC-EX) | Zone 20 (UKEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
ATEX category gas: II 1G
Type of ignition protection for gas: Ex ia IIC T6/T5 Ga
ATEX category for dust: II 1D
Type of (ignition) protection for dust: Ex ia IIIC Txx°C Da
Explosion protection certication outside the EU: EPL Da (CN) | EPL Da (GB) | EPL Da (IEC-EX) | EPL Ga (CN) | EPL Ga (GB) | EPL Ga (IEC-EX)
Explosive ambient temperature: See ATEX certicate | See IECEx certicate
Max. input voltage Vi: 16 V
Eﬀective internal inductance Li: 100 µH
Eﬀective internal capacitance Ci: 100 nF
Max. input parameter of intrinsically safe circuit: See IECEx certicate | See ATEX certicate
Certicate issuing authority: Eurocert. SIL202587141

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 3482807. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
