Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
3482808

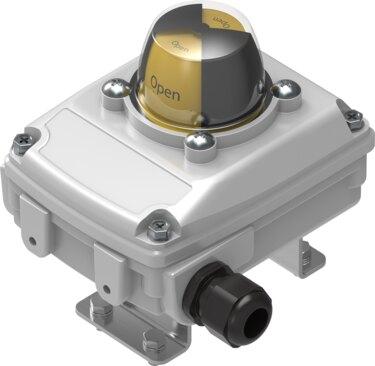

Limit switch box SRBC-CA3-YR90-N-1-P-C2P20
The Festo part number 3482808 is an inductive industrial component featuring a PNP switching output, N.O. contact switching element function, and a microswitch type P&F NBB2-V3-E2 operating within a DC operating voltage range of 10 V to 30 V. It achieves a Safety Integrity Level of SIL 3, supports a maximum switching frequency of 1000 Hz with a max output current of 100 mA, and operates in ambient temperatures from -20 °C to 70 °C. Certified with RCM compliance mark, c CSA us (OL), KC-EMV, and Eurocert SIL202587141, this RoHS compliant device includes pulsed short-circuit protection and reverse polarity protection for all electrical connections while meeting EU and UK EMC and RoHS directives. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3482808
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3482808.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c CSA us (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- KC characters
- KC-EMV
- Certicate issuing authority
- Eurocert. SIL202587141
- Note on materials
- RoHS compliant
- Safety integrity level (SIL)
- SIL 3
- Measuring principle
- Inductive
- Ambient temperature
- -20 °C...70 °C
- Switching output
- PNP
- Switching element function
- N.O. contact
- Max. switching frequency
- 1000 Hz
- Max. output current DC
- 100 mA
- Voltage drop
- 3 V
- Residual current
- 0 mA...0.5 mA
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...30 V
- Idle current
- 15 mA
- Reverse polarity protection
- for all electrical connections
- Microswitch type
- Switch type P&F NBB2-V3-E2
- Electrical connection
- Screw terminal
- Electrical connection 1, connection type
- Terminal strip
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- Spring-loaded terminal
- Electrical connection 1, number of pins/wires
- 10
- Closable nominal conductor cross-section
- 0.25 mm²...2.5 mm²
- Cable tting
- M20x1.5
- Approved cable diameter
- 5 mm...13 mm
- Dimensions W x L x H
- 127 mm x 98 mm x 122 mm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3482808. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
