Festo
3482809

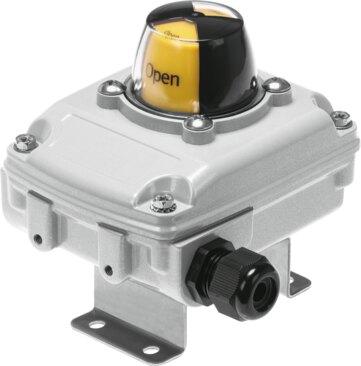

Limit switch box SRBC-CA3-YR90-N-1-N-C2P20
The Festo 3482809 is an inductive industrial component featuring an NPN switching output with a normally open contact function, a maximum switching frequency of 1000 Hz, and a DC operating voltage range of 10 V to 30 V. This RoHS-compliant device operates within an ambient temperature range of -20 °C to 70 °C, incorporates pulsed short-circuit protection and reverse polarity protection for all electrical connections, and achieves a Safety Integrity Level of SIL 3. It carries c CSA us (OL), RCM, KC-EMV, CE, and UKCA compliance markings, with certification issued by Eurocert under SIL202587141. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3482809
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3482809.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c CSA us (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- KC characters
- KC-EMV
- Certicate issuing authority
- Eurocert. SIL202587141
- Note on materials
- RoHS compliant
- Safety integrity level (SIL)
- SIL 3
- Measuring principle
- Inductive
- Ambient temperature
- -20 °C...70 °C
- Switching output
- NPN
- Switching element function
- N.O. contact
- Max. switching frequency
- 1000 Hz
- Max. output current DC
- 100 mA
- Voltage drop
- 3 V
- Residual current
- 0 mA...0.5 mA
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...30 V
- Idle current
- 15 mA
- Reverse polarity protection
- for all electrical connections
- Microswitch type
- Switch type P&F NBB2-V3-E0
- Electrical connection
- Screw terminal
- Electrical connection 1, connection type
- Terminal strip
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- Spring-loaded terminal
- Electrical connection 1, number of pins/wires
- 10
- Closable nominal conductor cross-section
- 0.25 mm²...2.5 mm²
- Cable tting
- M20x1.5
- Approved cable diameter
- 5 mm...13 mm
- Dimensions W x L x H
- 127 mm x 98 mm x 122 mm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3482809. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
