3482811

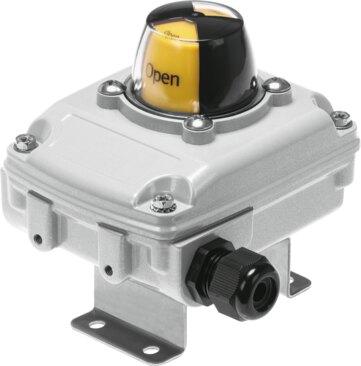

Name: Festo 3482811 Limit switch box SRBC-CA3-YR90-R-2A-1W-C2P20
Brand: Festo

Limit switch box SRBC-CA3-YR90-R-2A-1W-C2P20

The Festo part number 3482811 is an industrial component featuring a magnetic reed measuring principle and a single-pin toggle switch contact-based switching output using a Hamlin 59140-030 microswitch type. It operates across an AC operating voltage range of 0 V to 120 V with a maximum AC output current of 0.18 A, and a DC operating voltage range of 0 V to 175 V with a maximum DC output current of 0.25 A, while supporting an ambient temperature range of -20 °C to 80 °C. Electrical connection is achieved through a terminal strip featuring straight cable outlets, spring-loaded terminals, and screw terminals, holding a Safety Integrity Level of SIL 3 with a certificate issuing authority from Eurocert under SIL202587141. Compliance is verified through c CSA us (OL) certification, KC-EMV markings, RoHS material compliance, and CE and UKCA markings as per respective EU and UK low voltage and RoHS directives. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 3482811
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 3482811.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: c CSA us (OL)
CE marking (see declaration of conformity): As per EU low voltage directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK RoHS instructions | To UK instructions for electrical equipment
KC characters: KC-EMV
Certicate issuing authority: Eurocert. SIL202587141
Note on materials: RoHS compliant
Safety integrity level (SIL): SIL 3
Measuring principle: Magnetic reed
Ambient temperature: -20 °C...80 °C
Switching output: Contact-based
Switching element function: Toggle switch, single-pin
Max. output current AC: 0.18 A
Max. output current DC: 0.25 A
Operating voltage range AC: 0 V...120 V
DC operating voltage range: 0 V...175 V
Microswitch type: Hamlin 59140-030
Electrical connection: Screw terminal
Electrical connection 1, connection type: Terminal strip
Electrical connection 1, cable outlet: Straight
Electrical connection 1, connection technology: Spring-loaded terminal
Electrical connection 1, number of pins/wires: 10
Closable nominal conductor cross-section: 0.25 mm²...2.5 mm²
Cable tting: M20x1.5
Approved cable diameter: 5 mm...13 mm
Dimensions W x L x H: 127 mm x 98 mm x 122 mm
Connection point for positioner and position sensor conforms to: VDI/VDE 3845 Size AA 1
Mounting position: Any
Product weight: 800 g
Housing colour: Gray

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 3482811. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
