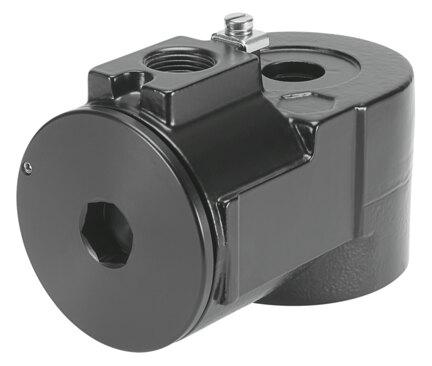

Reference imageConfirm configuration by manufacturer part number.
Festo
3504609
Solenoid coil VACC-S18-70-K4-16U-EX4D
The Festo 3504609 industrial component features electrical actuation with a 100% duty cycle, operating on 120 V AC at 50/60 Hz with 7.0 VA power or 120 V DC at 7.0 W, and accommodates permissible voltage fluctuations of -15% / +10%. Built with class H insulation and a corrosion resistance class of 4 for particularly high corrosion stress, this unit achieves an IP65 degree of protection, has any mounting position, and contains no switching position indication. Certified for explosive atmospheres across ATEX, IEC-Ex, and UKEX zones 1, 2, 21, and 22 under certificate authorities BVS15ATEXE135 and IECExBVS.15.0116, it complies with EU and UK RoHS and explosion protection directives. Please submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3504609
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3504609.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Actuation type
- Electrical
- Mounting position
- Any
- Switching position indication
- No
- Duty cycle
- 100%
- Insulation class
- H
- Coil characteristics
- 120 V AC: 50/60 Hz, power 7.0 VA | 120 V DC: 7.0 W
- Permissible voltage uctuations
- -15% / +10%
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions | To UK RoHS instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Db (IEC-EX) | EPL Gb (GB) | EPL Gb (IEC-EX)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (IEC-EX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (IEC-EX) | Zone 21 (UKEX) | Zone 22 (ATEX)
- Certicate issuing authority
- BVS15ATEXE135 | IECExBVS.15.0116
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex db IIC T6, T5, T4 Gb
- Type of (ignition) protection for dust
- Ex tb IIIC T80°C,95°C,130°C Db
- Explosive ambient temperature
- T4, T130°C: -50°C <= Ta <= +90°C | T5, T95°C: -50°C <= Ta <= +55°C | T6, T80°C: -50°C <= Ta <= +40°C
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP65
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3504609. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
