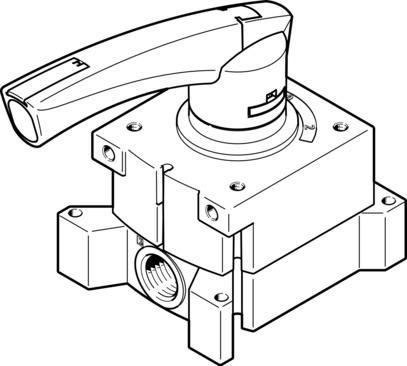

Name: Festo 3515361 Hand lever valve VHER-P-H-B43C-G14
Brand: Festo

Hand lever valve VHER-P-H-B43C-G14

The Festo 3515361 is a 4/3-way closed manual industrial component featuring a rotary vane structural design with an 8 mm nominal width and a G1/4 pneumatic working port. It delivers a normal nominal flow rate of 1150 l/min across an operating pressure range of 0 bar to 10 bar, supporting vacuum operation at connection 3 and dual pressure modes where port 1 pressure exceeds port 3. Built with a hard sealing principle, direct control, and an adjustable exhaust air function, this ATEX Zone 2 and Zone 22 certified unit operates with ISO 8573-1:2010 [7:4:4] compressed air and accommodates oil lubrication. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 3515361
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 3515361.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 4/3-way, closed
Actuation type: Manual
Width: 66 mm
Normal nominal ow rate (normalized to DIN 1343): 1150 l/min
Pneumatic working port: G1/4
Operating pressure: 0 bar...10 bar
Information on operating pressure: Vacuum operation at connection 3 only | In dual pressure mode, the pressure at port 1 must be higher than at | port 3.
Structural design: Rotary vane
Nominal width: 8 mm
Exhaust air function: Adjustable
Application note: Only operate by hand
Actuator lock: can be closed with accessories
Sealing principle: Hard
Type of control: directly
Flow direction: Non-reversible
Underlap: Yes
Switching position indication: with accessories
Explosion prevention and protection: Zone 2 (ATEX) | Zone 22 (ATEX)
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Temperature of medium: -20 °C...80 °C
Ambient temperature: -20 °C...80 °C
Actuating torque: 2 Nm
Product weight: 435 g
Type of mounting: Alternatively: | Front panel mounting | With through-hole
Pneumatic connection 1: G1/4
