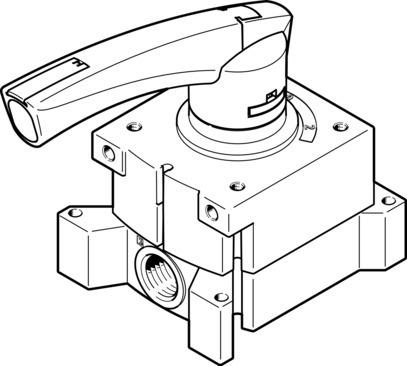

Reference imageConfirm configuration by manufacturer part number.
Festo
3515542
Hand lever valve VHER-P-H-B43E-G14
The Festo 3515542 is a 66 mm wide manual industrial component featuring a 4/3 exhausted valve function with a rotary vane structural design and a normal nominal flow rate of 1150 l/min at G1/4 pneumatic working ports. It operates within a 0 bar to 10 bar pressure range, supporting vacuum operation at connection 3 and dual pressure modes where port 1 pressure exceeds port 3. Designed for direct control with a non-reversible flow direction, hard sealing principle, and adjustable exhaust air function, this ATEX-certified unit is rated for Zone 2 and Zone 22 hazardous locations. Please submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3515542
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3515542.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 4/3 exhausted
- Actuation type
- Manual
- Width
- 66 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1150 l/min
- Pneumatic working port
- G1/4
- Operating pressure
- 0 bar...10 bar
- Information on operating pressure
- Vacuum operation at connection 3 only | In dual pressure mode, the pressure at port 1 must be higher than at | port 3.
- Structural design
- Rotary vane
- Nominal width
- 8 mm
- Exhaust air function
- Adjustable
- Application note
- Only operate by hand
- Actuator lock
- can be closed with accessories
- Sealing principle
- Hard
- Type of control
- directly
- Flow direction
- Non-reversible
- Underlap
- Yes
- Switching position indication
- with accessories
- Explosion prevention and protection
- Zone 2 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -20 °C...80 °C
- Ambient temperature
- -20 °C...80 °C
- Actuating torque
- 2 Nm
- Product weight
- 435 g
- Type of mounting
- Alternatively: | Front panel mounting | With through-hole
- Pneumatic connection 1
- G1/4
