Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

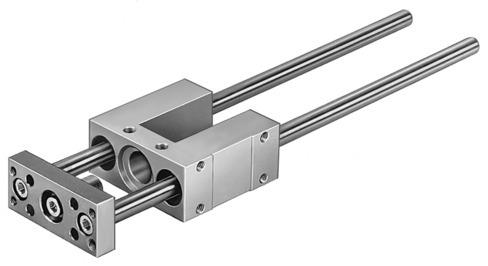

Reference imageConfirm configuration by manufacturer part number.
Festo
35196
Guide unit FEN-8/10- -GF
The Festo part number 35196 is a structural guide component featuring a size of 8/10, an adjustable stroke from 1 mm to 100 mm, and a sliding guide configuration with an anodized wrought aluminum alloy housing and yoke plate alongside high-alloy steel guide components. This unit accommodates any mounting position via internal thread, delivers a displacement force of 15 N, operates within an ambient temperature range of -20 °C to 80 °C, and maintains VDMA24364-B2-L LABS conformity with RoHS-compliant materials. Additional moving mass and weight scale at 8 g per 10 mm stroke against a basic weight of 332 g at 0 mm stroke, with explosion prevention governed by the certificate information. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 35196
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 35196.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 8/10
- Stroke
- 1 mm...100 mm
- Mounting position
- Any
- Guide
- Sliding guide
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Displacement force
- 15 N
- Additional moving mass per 10 mm stroke
- 8 g
- Basic weight with 0 mm stroke
- 332 g
- Additional weight per 10 mm stroke
- 8 g
- Center of gravity of moving mass with 0 mm stroke
- 30 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.9 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS-compliant
- Material of guide component
- High-alloy steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Wrought aluminum alloy, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 35196. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
