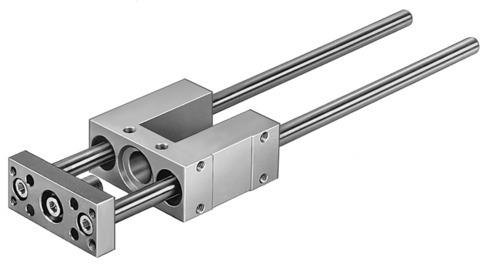

Reference imageConfirm configuration by manufacturer part number.
Festo
35197
Guide unit FEN-8/10- -KF
The Festo 35197 is an industrial guide featuring a structural design with a recirculating ball bearing guide and an 8/10 size with an adjustable stroke from 1 mm to 100 mm for any mounting position. It accommodates an ambient temperature range of -20 °C to 80 °C, a displacement force of 15 N, and an additional moving mass of 8 g per 10 mm stroke, while withstanding maximum dynamic forces of 450 N for Fy and Fz, static forces of 680 N, and specific moment capacities up to 16 Nm static Mx and 7 Nm static My and Mz. Explosion prevention and protection require observing the certificate information, and LABS conformity complies with VDMA24364-B2-L. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 35197
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 35197.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 8/10
- Stroke
- 1 mm...100 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing guide
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 450 N
- Max. force Fy static
- 680 N
- Max. force Fz
- 450 N
- Max. force Fz static
- 680 N
- Max. torque Mx
- 11 Nm
- Max. static moment Mx
- 16 Nm
- Max. torque My
- 5 Nm
- Max. static moment My
- 7 Nm
- Max. torque Mz
- 5 Nm
- Max. static moment Mz
- 7 Nm
- Displacement force
- 15 N
- Additional moving mass per 10 mm stroke
- 8 g
- Basic weight with 0 mm stroke
- 300 g
- Additional weight per 10 mm stroke
- 8 g
- Center of gravity of moving mass with 0 mm stroke
- 30 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.9 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS-compliant
- Material of guide component
- Tempered steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Wrought aluminum alloy, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 35197. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
