3535104

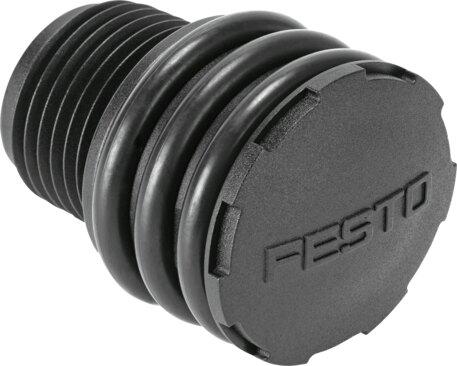

Name: Festo 3535104 Exhaust protection VABD-D3-SN-N12
Brand: Festo

Exhaust protection VABD-D3-SN-N12

The Festo part number 3535104 is an industrial component featuring screw-in mounting with an external thread that permits installation in any mounting position. Constructed with PA vent screw material, EPDM seals, and RoHS-compliant materials, it operates within an ambient temperature range of -50 °C to 60 °C and an operating pressure of 0 MPa to 1.2 MPa (0 bar to 12 bar). This IP65-rated unit uses compressed air as an operating medium according to ISO 8573-1:2010 [7:-:-], adheres to VDMA24364 Zone III LABS (PWIS) conformity, and provides ATEX explosion prevention and protection for Zone 1, Zone 2, Zone 21, and Zone 22. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 3535104
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 3535104.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Mounting position: Any
Operating pressure: 0 MPa...1.2 MPa | 0 bar...12 bar
Explosion prevention and protection: Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
LABS (PWIS) conformity: VDMA24364 Zone III
Degree of protection: IP65
Ambient temperature: -50 °C...60 °C
Type of mounting: Screw-in | With external thread
Note on materials: RoHS compliant
Seals material: EPDM
Vent screw material: PA

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 3535104. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
