Festo
35415

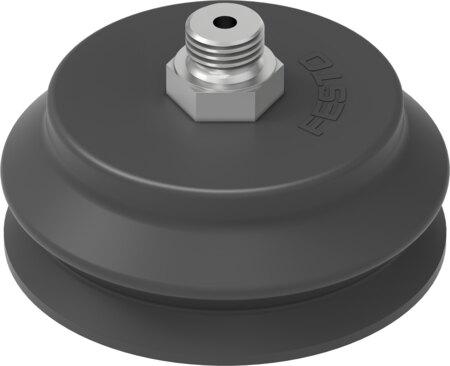

Vacuum suction cup VASB-75-1/4-NBR
The Festo 35415 is a black round protective bellows 1.5-fold industrial component featuring a 75 mm suction cup diameter, 60 mm effective suction cup diameter, and 15.5 mm height compensation with a nominal width of 4 mm and 65.5 cm³ volume. Weighing 95 g with a 60 +/-5 Shore hardness, it mounts via a G1/4 vacuum connection in any position and delivers a holding force of 197 N at a nominal operating pressure of -0.07 MPa (-0.7 bar, -10.15 psi) within an operating pressure range of -0.095 MPa to 0 MPa (-0.95 bar to 0 bar, -13.775 psi to 0 psi). Built for atmospheric air based on ISO 8573-1:2010 [7:-:-] across an ambient temperature range of -20 °C to 80 °C, the unit offers moderate corrosion stress resistance (CRC 2) and VDMA24364-A1-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 35415
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 35415.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 15.5 mm
- Nominal width
- 4 mm
- Suction cup diameter
- 75 mm
- Suction cup volume
- 65.5 cm³
- Effective suction cup diameter
- 60 mm
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- round protective bellows 1.5-fold
- Operating pressure
- -0.095 MPa...0 MPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -0.07 MPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1-L
- Ambient temperature
- -20 °C...80 °C
- Holding force at nominal operating pressure
- 197 N
- Product weight
- 95 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- G1/4
- Color
- Black
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Die-cast zinc
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 35415. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
