Festo
35416

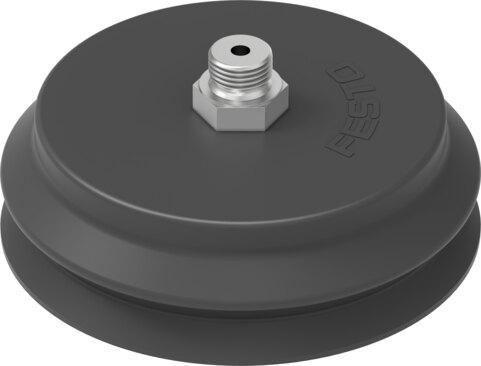

Vacuum suction cup VASB-100-1/4-NBR
Engineered with a 100 mm round protective 1.5-fold bellows suction cup and an effective diameter of 85 mm, this Festo industrial component part number 35416 operates with atmospheric air based on ISO 8573-1:2010 [7:-:-]. It features an NBR suction cup with a shore hardness of 60 +/-5, a die-cast zinc screwed plug, a nominal width of 4 mm, and a G1/4 mounting thread, vacuum connection, and suction cup mounting positioned at the top. The unit delivers a breakaway force and holding force of 397 N at a 70% vacuum across an ambient temperature range of -20 °C to 80 °C, incorporating RoHS-compliant materials and VDMA24364-B1/B2-L LABS conformity in a black finish. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 35416
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 35416.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 4 mm
- Suction cup diameter
- 100 mm
- Effective suction cup diameter
- 85 mm
- Connection position
- up
- Suction cup shape
- round protective bellows 1.5-fold
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Breakaway force at 70% vacuum
- 397 N
- Holding force at nominal operating pressure
- 397 N
- Mounting thread
- G1/4
- Suction cup mounting
- G 1/4
- Vacuum connection
- G1/4
- Color
- Black
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Die-cast zinc
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 35416. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
