Festo
35426

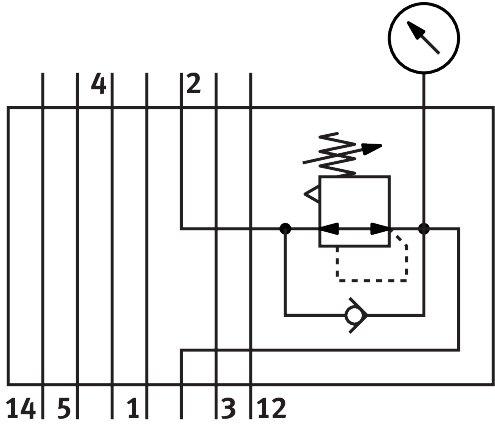

Intermediate pressure regulator plate LR-ZP-B-D-3
The Festo part number 35426 is an ISO 5599-1 compliant industrial component featuring a piston structural design and an integrated pressure regulator with a regulation range of 0.05 MPa to 1.2 MPa (0.5 bar to 12 bar, or 7.25 psi to 174 psi). It supports a maximum inlet pressure of 1.4 MPa (14 bar or 203 psi) and is constructed with a die-cast aluminum and steel housing, NBR seals, and weighs 1220 g while meeting RoHS directives, VDMA24364 Zone III LABS conformity, and UL Recognized (OL) certification. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 35426
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 35426.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- ISO 5599-1
- Structural design
- Piston
- Integrated function
- Pressure regulator
- Pressure regulation range MPa
- 0.05 MPa...1.2 MPa
- Pressure regulation range
- 0.5 bar...12 bar
- Pressure regulation range psi
- 7.25 psi...174 psi
- Inlet pressure 1
- 14 bar
- Inlet pressure 1 MPa
- 1.4 MPa
- Inlet pressure 1 psi
- 203 psi
- Certication
- UL - Recognized (OL)
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Product weight
- 1220 g
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- Die-cast aluminum | Steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 35426. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
