Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
35429

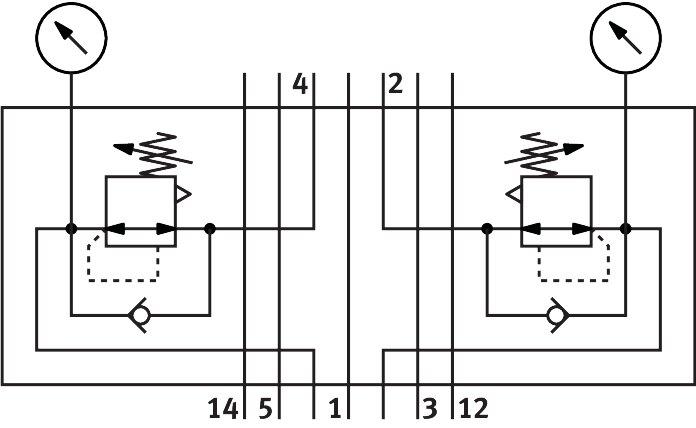

Intermediate pressure regulator plate LR-ZP-A/B-D-3
This Festo industrial component, part number 35429, features a piston structural design based on the ISO 5599-1 norm and includes an integrated pressure regulator. Constructed with a die-cast aluminum and steel housing alongside NBR seals, it supports a pressure regulation range of 0.05 MPa to 1.2 MPa (0.5 bar to 12 bar / 7.25 psi to 174 psi) at an inlet pressure 1 of up to 1.4 MPa (14 bar / 203 psi). The unit has a product weight of 1770 g, conforms to VDMA24364 Zone III LABS (PWIS) requirements, carries UL-Recognized (OL) certification, and uses RoHS-compliant materials. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 35429
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 35429.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- ISO 5599-1
- Structural design
- Piston
- Integrated function
- Pressure regulator
- Pressure regulation range MPa
- 0.05 MPa...1.2 MPa
- Pressure regulation range
- 0.5 bar...12 bar
- Pressure regulation range psi
- 7.25 psi...174 psi
- Inlet pressure 1
- 14 bar
- Inlet pressure 1 MPa
- 1.4 MPa
- Inlet pressure 1 psi
- 203 psi
- Certication
- UL - Recognized (OL)
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Product weight
- 1770 g
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- Die-cast aluminum | Steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 35429. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
