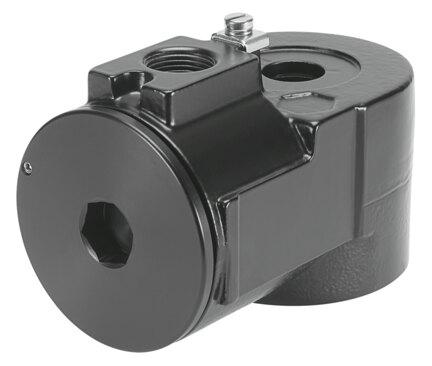

Reference imageConfirm configuration by manufacturer part number.
Festo
3546625
Solenoid coil VACC-S18-70-K5-2U-EX4D
The Festo part number 3546625 is an electrically actuated industrial component featuring a 100% duty cycle, Class H insulation, and coil characteristics of 110 V AC at 50/60 Hz with 7.0 VA power or 110 V DC at 7.0 W, operating with permissible voltage fluctuations of -15% / +10% in any mounting position without a switching position indication. Built with a degree of protection of IP65, a corrosion resistance class of CRC 4 for particularly high corrosion stress, and VDMA24364 Zone III LABS conformity, it carries CE and UKCA markings alongside EPL Db and EPL Gb explosion protection certifications for ATEX, IEC-EX, and UKEX zones 1, 2, 21, and 22, backed by certificate issuing authorities BVS15ATEXE135 and IECExBVS.15.0116. This unit is classified under ATEX category II 2G for gas with ignition protection Ex db IIC T6, T5, T4 Gb and category II 2D for dust with protection Ex tb IIIC T80°C,95°C,130°C Db, functioning within explosive ambient temperature ranges spanning from -50°C to +90°C depending on the temperature class. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3546625
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3546625.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Actuation type
- Electrical
- Mounting position
- Any
- Switching position indication
- No
- Duty cycle
- 100%
- Insulation class
- H
- Coil characteristics
- 110 V AC: 50/60 Hz, power 7.0 VA | 110 V DC: 7.0 W
- Permissible voltage uctuations
- -15% / +10%
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions | To UK RoHS instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Db (IEC-EX) | EPL Gb (GB) | EPL Gb (IEC-EX)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (IEC-EX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (IEC-EX) | Zone 21 (UKEX) | Zone 22 (ATEX)
- Certicate issuing authority
- BVS15ATEXE135 | IECExBVS.15.0116
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex db IIC T6, T5, T4 Gb
- Type of (ignition) protection for dust
- Ex tb IIIC T80°C,95°C,130°C Db
- Explosive ambient temperature
- T4, T130°C: -50°C <= Ta <= +90°C | T5, T95°C: -50°C <= Ta <= +55°C | T6, T80°C: -50°C <= Ta <= +40°C
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP65
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3546625. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
