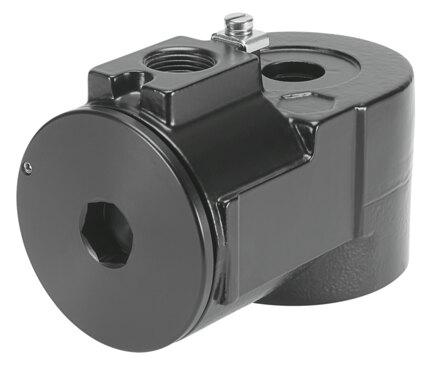

Reference imageConfirm configuration by manufacturer part number.
Festo
3546662
Solenoid coil VACC-S18-70-K5-3U-EX4D
The Festo part number 3546662 is an electrical industrial component featuring any mounting position, 100% duty cycle, class H insulation, and IP65 degree of protection with a corrosion resistance class of 4. It operates on 230 V AC at 50/60 Hz with 7.0 VA power or 230 V DC at 7.0 W, allowing voltage fluctuations of -15% / +10% and featuring VDMA24364 Zone III LABS conformity without switching position indication. Certified for ATEX, IEC-Ex, and UKEX explosion protection in gas zones 1 and 2 and dust zones 21 and 22, it carries BVS15ATEXE135 and IECExBVS.15.0116 certificate issuing authorities with II 2G and II 2D categories for gas and dust respectively. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3546662
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3546662.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Actuation type
- Electrical
- Mounting position
- Any
- Switching position indication
- No
- Duty cycle
- 100%
- Insulation class
- H
- Coil characteristics
- 230 V AC: 50/60 Hz, power 7.0 VA | 230 V DC: 7.0 W
- Permissible voltage uctuations
- -15% / +10%
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions | To UK RoHS instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Db (IEC-EX) | EPL Gb (GB) | EPL Gb (IEC-EX)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (IEC-EX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (IEC-EX) | Zone 21 (UKEX) | Zone 22 (ATEX)
- Certicate issuing authority
- BVS15ATEXE135 | IECExBVS.15.0116
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex db IIC T6, T5, T4 Gb
- Type of (ignition) protection for dust
- Ex tb IIIC T80°C,95°C,130°C Db
- Explosive ambient temperature
- T4, T130°C: -50°C <= Ta <= +90°C | T5, T95°C: -50°C <= Ta <= +55°C | T6, T80°C: -50°C <= Ta <= +40°C
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP65
