Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

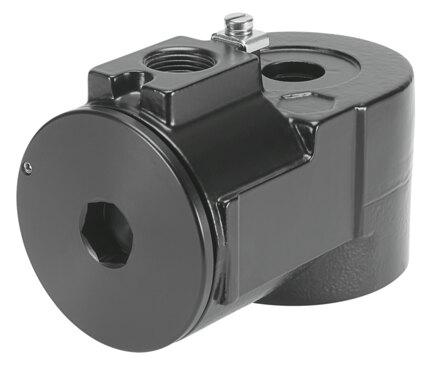

Reference imageConfirm configuration by manufacturer part number.
Festo
3546816
Solenoid coil VACC-S18-70-K5-1-U2D
The Festo 3546816 is an electrical industrial component featuring a 100% duty cycle, Class H insulation, and a 24 V DC, 7.0 W coil with permissible voltage fluctuations of -15% / +10%. Constructed from wrought aluminum alloy and cast iron with a corrosion resistance class of 4 and an IP65 degree of protection, it includes a terminal box with an NPT1/2 cable entry thread and operates within an explosive ambient temperature range of -25°C to +80°C for T4A, 120°C. This RoHS-compliant part supports any mounting position, VDMA24364 Zone III LABS conformity, and Class I, Div. 2 explosion protection certification and prevention for both US and Canadian standards, weighing 1700 g without a switching position indication. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3546816
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3546816.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Actuation type
- Electrical
- Mounting position
- Any
- Switching position indication
- No
- Duty cycle
- 100%
- Insulation class
- H
- Coil characteristics
- 24 V DC: 7.0 W
- Permissible voltage uctuations
- -15% / +10%
- Explosion protection certication outside the EU
- Class I, Div. 2 (CA) | Class I, Div. 2 (US)
- Explosion prevention and protection
- Class I, Div. 2 (CA) | Class I, Div. 2 (US)
- Explosive ambient temperature
- T4A, 120°C: -25°C <= Ta <= +80°C
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP65
- Product weight
- 1700 g
- Electrical connection
- Terminal box, cable entry thread NPT1/2
- Note on materials
- RoHS compliant
- Solenoid coil material
- Wrought aluminum alloy | Cast iron
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3546816. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
