3546876

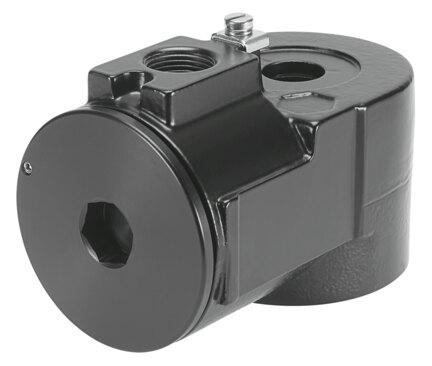

Name: Festo 3546876 Solenoid coil VACC-S18-70-K5-7-U2D
Brand: Festo

Solenoid coil VACC-S18-70-K5-7-U2D

The Festo part number 3546876 is an electrical industrial component featuring a 48 V DC, 7.0 W coil with class H insulation, operable at a 100% duty cycle with permissible voltage fluctuations of -15% and +10%. Constructed with a wrought aluminum alloy and cast iron solenoid coil, this IP65-rated unit provides a corrosion resistance class of 4 for particularly high corrosion stress and includes a terminal box with an NPT1/2 cable entry thread. Certified for Class I, Div. 2 in both the US and Canada for explosive ambient temperatures ranging from -25°C to +80°C (T4A, 120°C), the 1700 g RoHS-compliant assembly supports any mounting position and VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 3546876
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 3546876.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Actuation type: Electrical
Mounting position: Any
Switching position indication: No
Duty cycle: 100%
Insulation class: H
Coil characteristics: 48 V DC: 7.0 W
Permissible voltage uctuations: -15% / +10%
Explosion protection certication outside the EU: Class I, Div. 2 (CA) | Class I, Div. 2 (US)
Explosion prevention and protection: Class I, Div. 2 (CA) | Class I, Div. 2 (US)
Explosive ambient temperature: T4A, 120°C: -25°C <= Ta <= +80°C
Corrosion resistance class (CRC): 4 - Particularly high corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Degree of protection: IP65
Product weight: 1700 g
Electrical connection: Terminal box, cable entry thread NPT1/2
Note on materials: RoHS compliant
Solenoid coil material: Wrought aluminum alloy | Cast iron

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 3546876. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
