Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
3546949

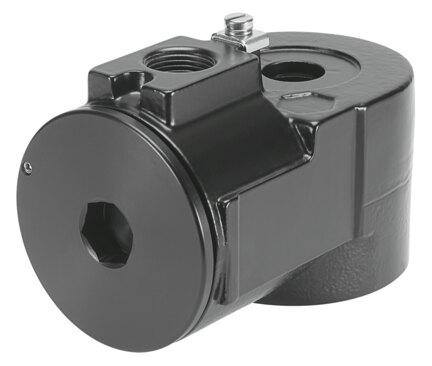

Solenoid coil VACC-S18-70-K5-3-U2D
The Festo 3546949 is an electrical industrial component weighing 1700 g with a 100% duty cycle and Class H insulation, operating at 220 V DC and 7.0 W with permissible voltage fluctuations of -15% / +10%. Constructed with a wrought aluminum alloy and cast iron solenoid coil, it features an IP65 protection degree, a terminal box with an NPT1/2 cable entry thread, and a corrosion resistance class of 4, alongside North American Class I, Div. 2 explosion protection for explosive ambient temperatures ranging from -25°C to +80°C. This RoHS compliant unit carries a CE marking per the EU low voltage directive and conforms to VDMA24364 Zone III LABS standards for any mounting position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3546949
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3546949.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Actuation type
- Electrical
- Mounting position
- Any
- Switching position indication
- No
- Duty cycle
- 100%
- Insulation class
- H
- Coil characteristics
- 220 V DC: 7.0 W
- Permissible voltage uctuations
- -15% / +10%
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- Explosion protection certication outside the EU
- Class I, Div. 2 (CA) | Class I, Div. 2 (US)
- Explosion prevention and protection
- Class I, Div. 2 (CA) | Class I, Div. 2 (US)
- Explosive ambient temperature
- T4A, 120°C: -25°C <= Ta <= +80°C
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP65
- Product weight
- 1700 g
- Electrical connection
- Terminal box, cable entry thread NPT1/2
- Note on materials
- RoHS compliant
- Solenoid coil material
- Wrought aluminum alloy | Cast iron
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3546949. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
