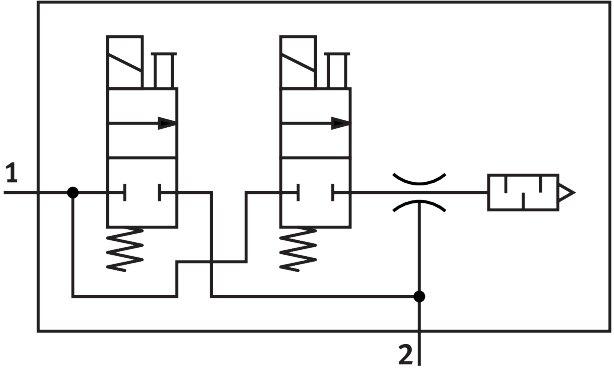

Reference imageConfirm configuration by manufacturer part number.
Festo
35531
Vacuum generator VAD-ME-I-1/8
The Festo part number 35531 is an aluminum industrial component featuring a T-shape structural design with a 0.95 mm nominal width Laval nozzle and G1/8 pneumatic and vacuum connections. This high vacuum ejector includes an electric ejector pulse valve, an electric on-off valve, operates within a pressure range of 1.5 bar to 8 bar, and delivers a maximum vacuum of 90% at a 100% duty cycle using compressed air per ISO 8573-1:2010 [7:4:4]. Built for an ambient and medium temperature range of 0 °C to 50 °C with IP65 degree of protection, it supports any mounting position via internal thread and plugs for electrical connection, while strictly excluding oil lubrication. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 35531
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 35531.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 0.95 mm
- Mounting position
- Any
- Ejector characteristics
- High vacuum
- Integrated function
- Ejector pulse valve, electric | Electric on-off valve
- Structural design
- T-shape
- Operating pressure
- 1.5 bar...8 bar
- Max. vacuum
- 90 %
- Duty cycle
- 100%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Temperature of medium
- 0 °C...50 °C
- Degree of protection
- IP65
- Ambient temperature
- 0 °C...50 °C
- Electrical connection
- Plug
- Type of mounting
- With internal thread
- Pneumatic connection 1
- G1/8
- Vacuum connection
- G1/8
- Housing material
- Aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 35531. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
