Festo
35533

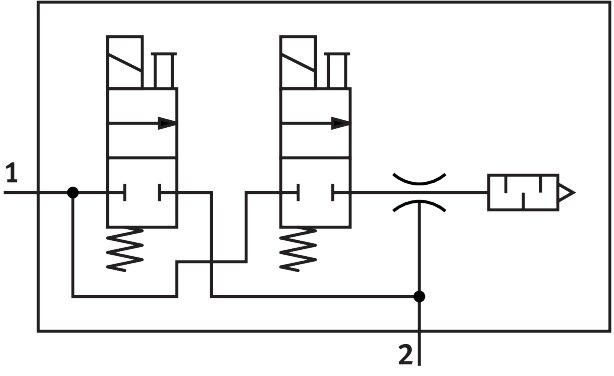

Vacuum generator VAD-ME-I-3/8
The Festo part number 35533 is an industrial component featuring a T-shape structural design with an aluminum housing and a 2 mm nominal width Laval nozzle. Engineered with high vacuum ejector characteristics, an electric ejector pulse valve, and an electric on-off valve, this unit operates within a pressure range of 1.5 bar to 8 bar, achieves a maximum vacuum of 90%, and supports a 100% duty cycle across an ambient and medium temperature range of 0 °C to 50 °C. It provides IP65 protection, features a plug electrical connection, internal thread mounting, a G1/4 pneumatic connection 1, and a G3/8 vacuum connection for compressed air media conforming to ISO 8573-1:2010 [7:4:4] without oil lubrication capability. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 35533
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 35533.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 2 mm
- Mounting position
- Any
- Ejector characteristics
- High vacuum
- Integrated function
- Ejector pulse valve, electric | Electric on-off valve
- Structural design
- T-shape
- Operating pressure
- 1.5 bar...8 bar
- Max. vacuum
- 90 %
- Duty cycle
- 100%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Temperature of medium
- 0 °C...50 °C
- Degree of protection
- IP65
- Ambient temperature
- 0 °C...50 °C
- Electrical connection
- Plug
- Type of mounting
- With internal thread
- Pneumatic connection 1
- G1/4
- Vacuum connection
- G3/8
- Housing material
- Aluminum
