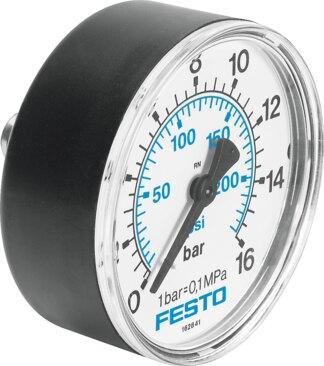

Reference imageConfirm configuration by manufacturer part number.
Festo
356759
Pressure gauge MA-50-16-1/4
The Festo 356759 is a Bourdon tube pressure gauge featuring a nominal size of 50 and a display and operating pressure range of 0 bar to 16 bar (0 psi to 232 psi). Conforming to EN 837-1, this industrial component utilizes a G1/4 rear-centered pneumatic connection with brass media-contacting materials and a brass screwed plug, rated for neutral liquids and inert gases excluding oxygen and acetylene. Certified for ATEX Zone 1, 2, 21, and 22 hazardous areas, the unit provides measurement accuracy class 2.5 with an IP43 degree of protection across ambient and medium temperatures from -20 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 356759
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 356759.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 bar...16 bar | 0 psi...232 psi
- Conforms to standard
- EN 837-1
- Pressure gauge nominal size
- 50
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Structural design
- Bourdon tube pressure gauge
- Type of mounting
- In-line installation
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...1.6 MPa | 0 bar...16 bar | 0 psi...232 psi
- Intermittent load factor
- 0.66
- Measurement accuracy class
- 2.5
- Degree of protection
- IP43
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -20 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- G1/4
- Materials in contact with the media
- Brass
- Material of screwed plug
- Brass
- Housing material
- ABS
