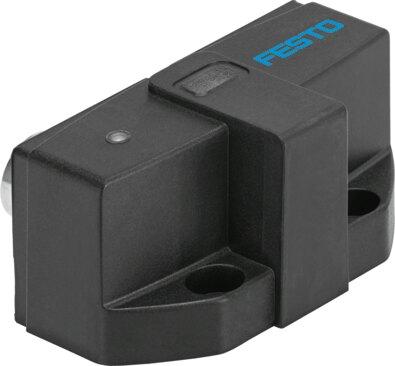

Name: Festo 3567908 Limit switch box SRBG-C1-N-1-AS-M12-M12
Brand: Festo

Limit switch box SRBG-C1-N-1-AS-M12-M12

The Festo 3567908 is a square inductive industrial component operating on the AS-Interface protocol version V3.0 with an addressing range of 1A to 31A (0) and 1B to 31B. Built in accordance with EN 60947-5-2 and VDI/VDE 3845 norms, this device features a switchable N/C or N/O switching element function, a maximum switching frequency of 100 Hz, and a DC operating voltage range of 26.5 V to 31.6 V within an ambient temperature range of -25 °C to 70 °C. It carries RCM compliance, c UL us (OL), and KC-EMV certifications alongside CE and UKCA markings compliant with applicable EMC and RoHS directives. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 3567908
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 3567908.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Design: Square
Based on norm: EN 60947-5-2 | VDI/VDE 3845
Certication: RCM compliance mark | c UL us (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
KC characters: KC-EMV
Note on materials: RoHS compliant
Measuring principle: Inductive
Ambient temperature: -25 °C...70 °C
Switching output: AS-Interface
Switching element function: N/C contact/N/O contact, switchable
Max. switching frequency: 100 Hz
Max. switching output voltage DC: 26.4 V
Max. output current DC: 100 mA
Max. switching capacity DC: 2.5 W
Protocol: AS-Interface
AS-Interface, protocol version: V3.0
AS-Interface, addressing range: 1A ... 31A (0) | 1B ... 31B
AS-Interface, product identication: IO code: D | ID code: A | ID1 code: 7 | ID2 code: E
DC operating voltage range: 26.5 V...31.6 V
Idle current: 35 mA
Electrical connection, input: M12x1
Electrical connection 1, connection type: Plug and socket strip
Electrical connection 1, cable outlet: Straight
Electrical connection 1, design: Round
